Fast - Instant QR code recognition

Accurate - Reliable verification every time

Reliable - Stable performance, secure access

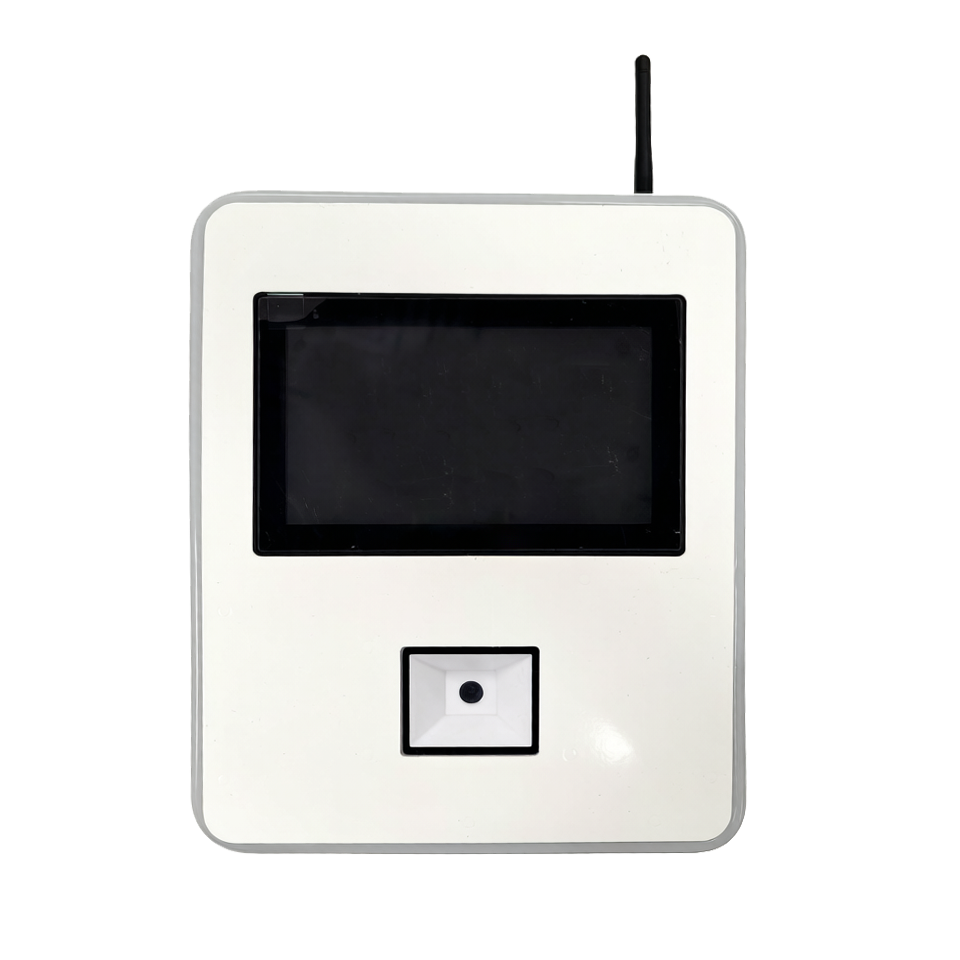

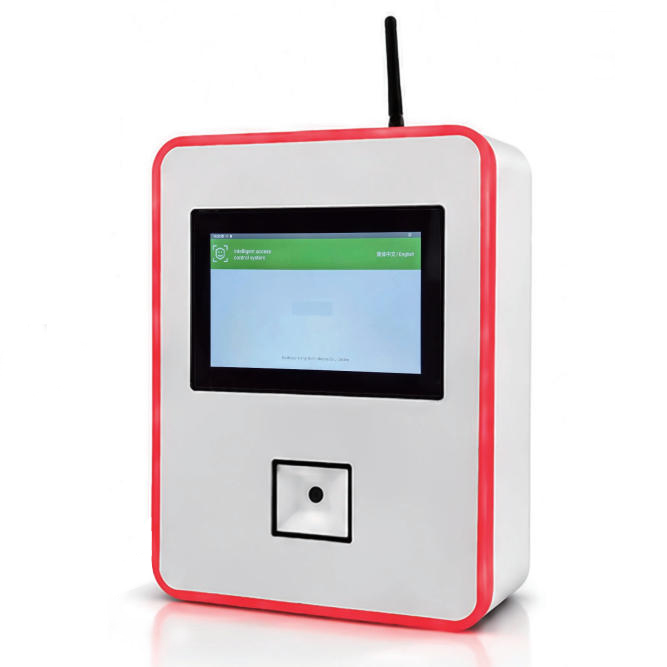

Baobi Smart Identification Terminal QRCode is equipped with a CMOS image sensing decoding module, designed for embedded scenarios such as self-service turnstiles. It stably reads all mainstream 1D and 2D barcodes. Featuring high-speed decoding, wide depth of field and strong adaptability to ambient light, the device integrates a high-definition touch display, high-performance octa-core processor and multi-mode network communication. Complete development SDKs are provided to support embedded integration and customized secondary development, widely applicable to turnstile verification, self-service access control and wristband barcode identification.

Baobi Smart Identification Terminal QRCodeProduct Specification

Detailed Hardware Specifications

Barcode Decoding Performance

Supported 1D Barcodes:

Code 128, EAN-13/8, UPC-A/E, Code 39/93, Codabar, ITF, full series of GS1 Databar

Supported 2D Barcodes:

Standard QR Code, Micro QR Code, Data Matrix, PDF417, Aztec, MaxiCode

7-inch LCD Display

• Screen Size: 7 inches

• Physical Resolution: 1024×600

• Aspect Ratio: 16:9

• Color Display: 16.7 million colors

• Contrast Ratio: 1000:1

• Response Time: 4ms

• Brightness: 250cd/㎡

• Viewing Angle: ≥160° horizontally and vertically

Capacitive Touch Screen

• Touch Type: Capacitive touch

• Touch Points: 10-point multi-touch

Main Unit Core Configuration

• Processor: Octa-core Cortex-A76 + Cortex-A55, 2.4GHz

• RAM: 8GB DDR

• Storage ROM: 128GB

• Operating System: Android 14

Network Communication

• Wired Network: Gigabit RJ45 port, adaptive 10/100/1000M Ethernet

• Wi-Fi: Wi-Fi 6 high-speed wireless

• Bluetooth: BT 5.4 low-energy Bluetooth

Peripheral & Control Interfaces

• USB Ports: 2× standard USB2.0 Type-A, fixed host mode, 1.5A current limit per port

• Ethernet Port: 1× Gigabit RJ45 port

• Antenna: 1 external Wi-Fi antenna

• Relay Signal: 1 set of NO-COM-NC switching control signal

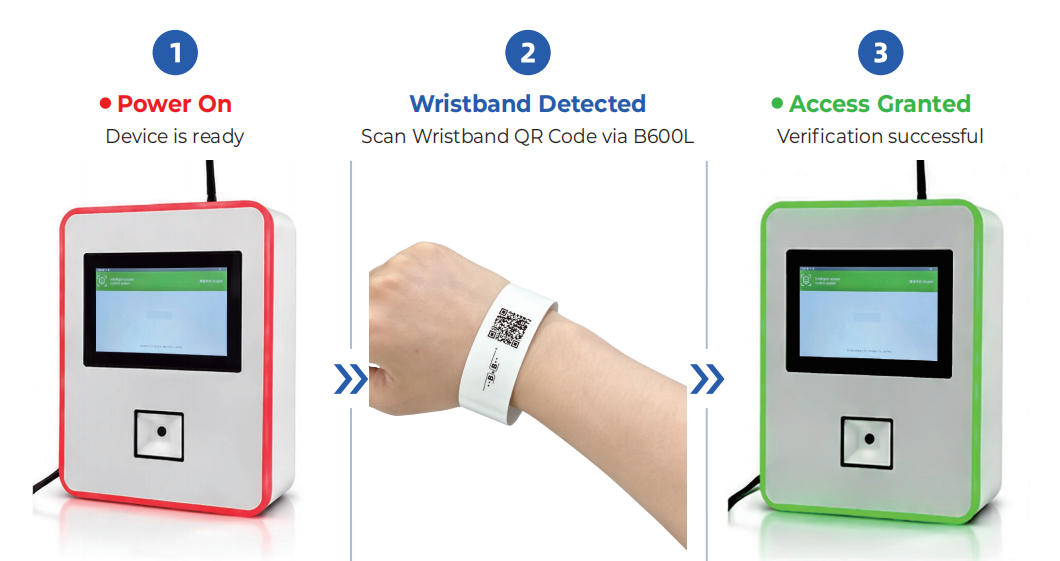

Status LED Indicators

• Red LED: Access denied / abnormal alarm

• Green LED: Verification passed / barcode decoded successfully

Software Development & Supporting APP

Supporting Application

Built-in dedicated wristband scanning demo APP with visual operation homepage.

Development Resources

Complete native Android SDK available, supporting secondary development in Java and Kotlin for system integration and function customization.

Physical & Environmental Parameters

Overall Dimensions & Material

• Dimension (L×W×H): 300mm × 240mm × 90mm

• Housing: Metal casing, suitable for industrial embedded installation

Operating Environment

• Operating Temperature: 5℃ ~ 40℃

• Operating Humidity: 20% ~ 80% RH (non-condensing)

Storage Environment

• Storage Temperature: -20℃ ~ 60℃

• Storage Humidity: 10% ~ 90% RH (non-condensing)

Power Supply

Wide-range AC power adaptive: AC 100-240V, 50/60Hz

Accessories

• B600L Scanner Host ×1

• Power Cord ×1

• External Wi-Fi Antenna ×1

Warranty & Technical Support

• Warranty Policy: 1-year free warranty for the whole machine

• Technical Support: Remote support via online service and telephone

• Training Service: Free on-site or online training covering equipment operation, maintenance and development debugging
