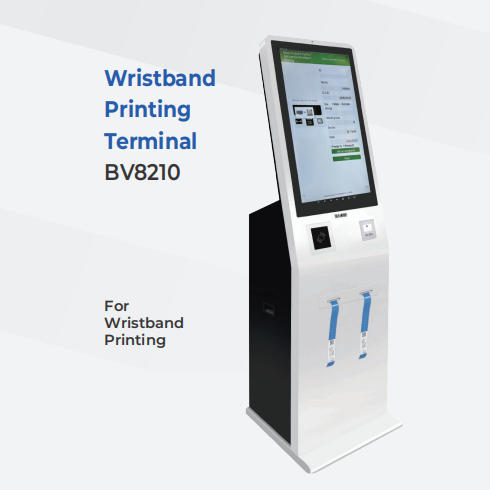

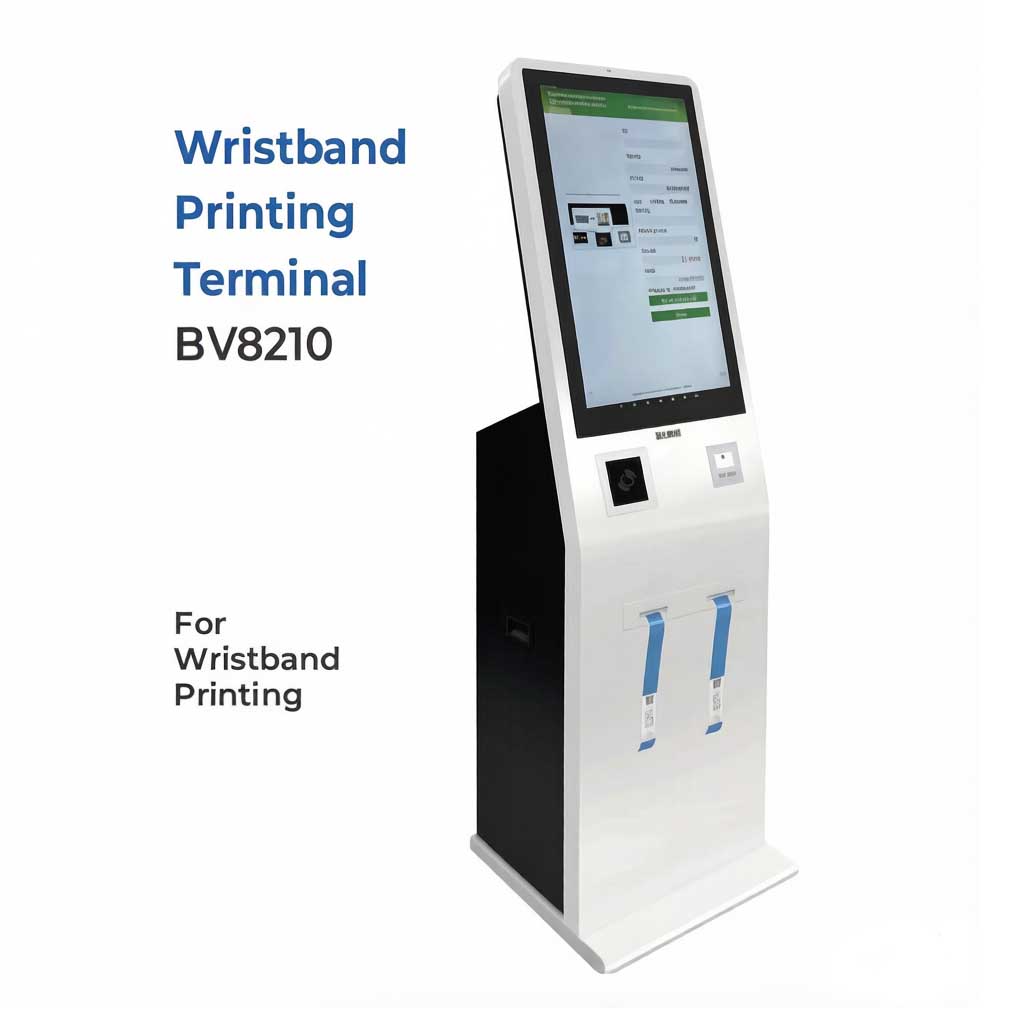

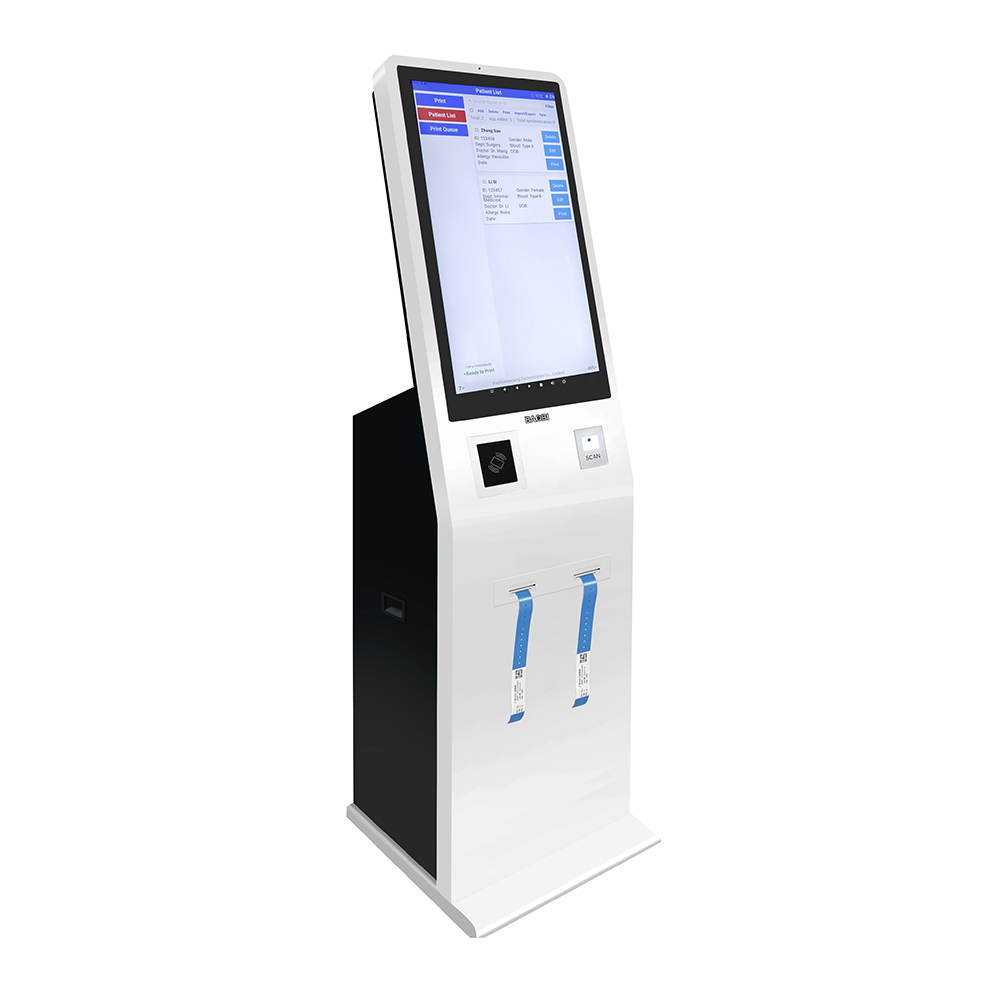

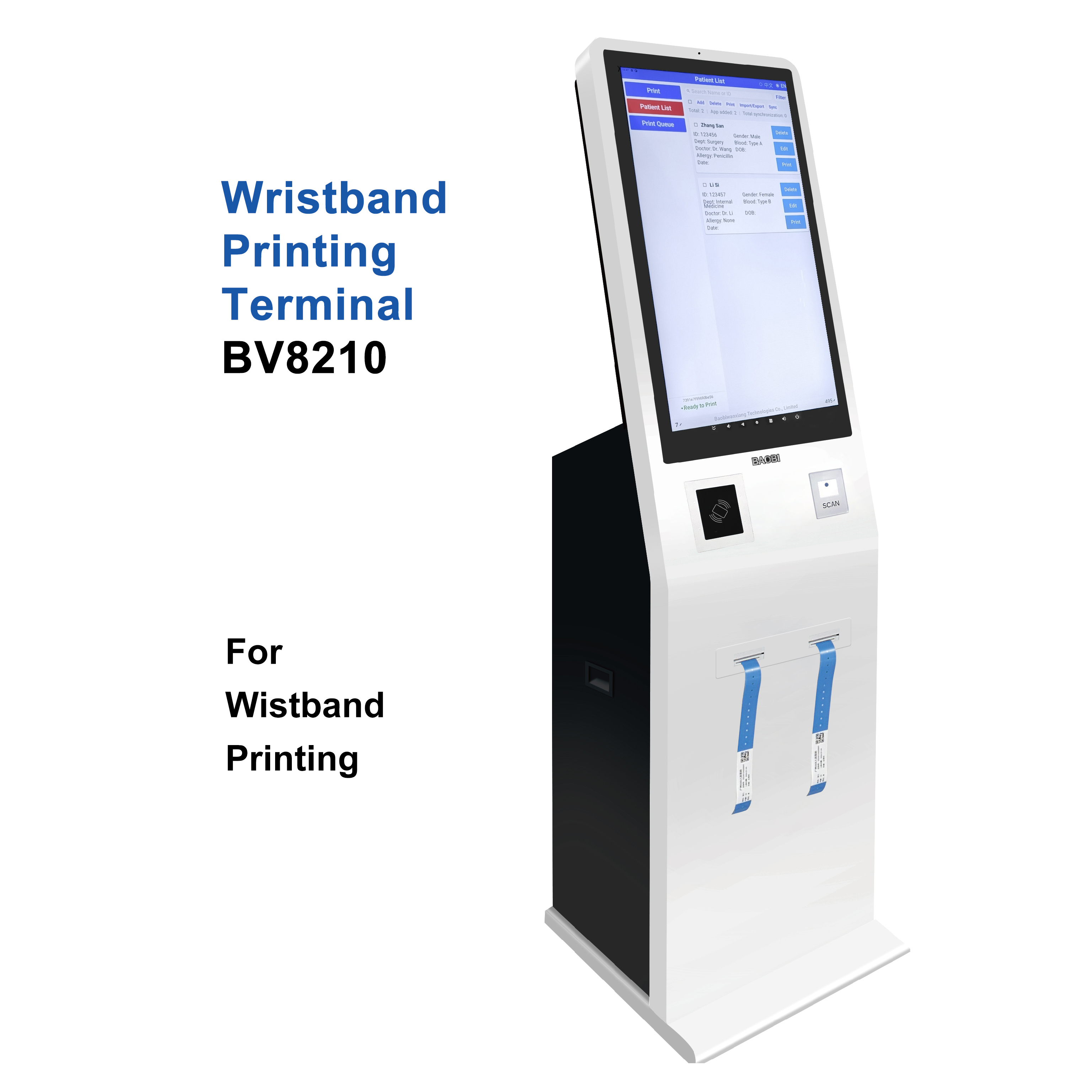

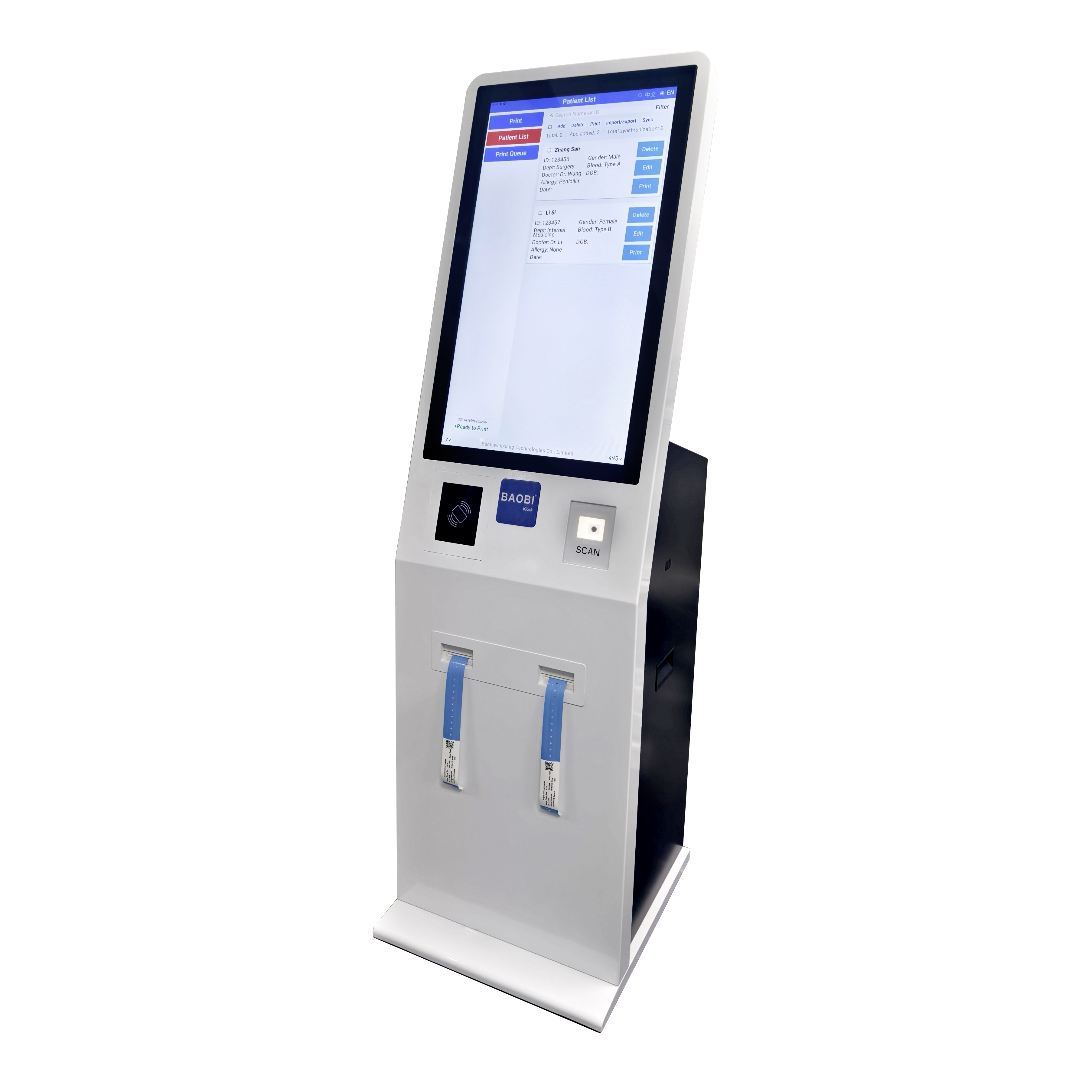

BV8210 Specification for BAOBI Wristband Printing Terminal

Product Overview

Baobi Wristband Printing Terminal is an intelligent device integrating multiple functions, designed to provide users with a convenient and efficient experience

Product Model

BV8210 Cabinet Type

Processor

- Model: RK3576, Android 14

- Core Number: Octa-core (Quad-core Cortex-A53 + Quad-core Cortex-A72)

- Main Frequency: Up to 2.2GHz

Appearance & Dimensions

1. The cabinet shell is made of high-quality steel plate with galvanized and spray-painted technology. The material and craftsmanship make the cabinet solid and thick, not easy to deform, and featuring water

resistance, rust resistance, corrosion resistance, anti-violence and wear resistance.

2. Adopts tempered glass, which is impact-resistant, scratch-resistant and aesthetically pleasing.

3. Internal wiring of the cabinet is standardized with shielding measures adopted to avoid electromagnetic interference.

4. Equipped with independent heat dissipation and power supply modules inside the machine.

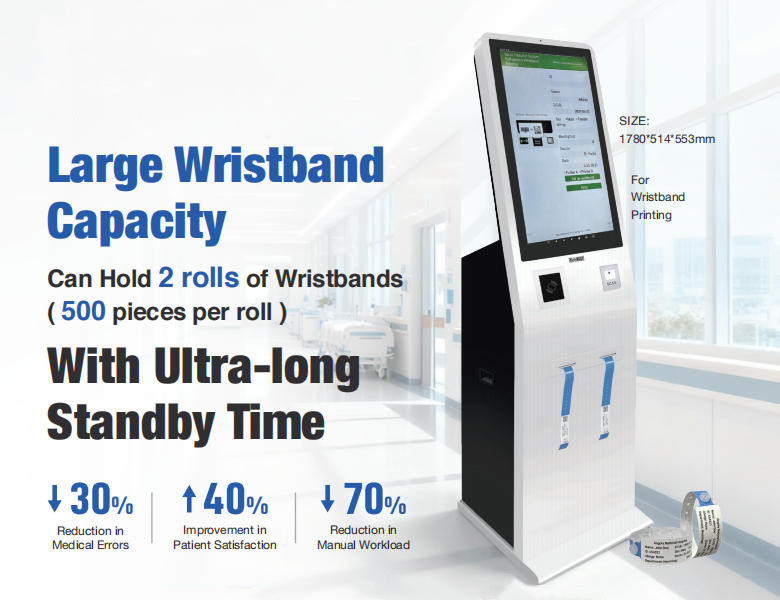

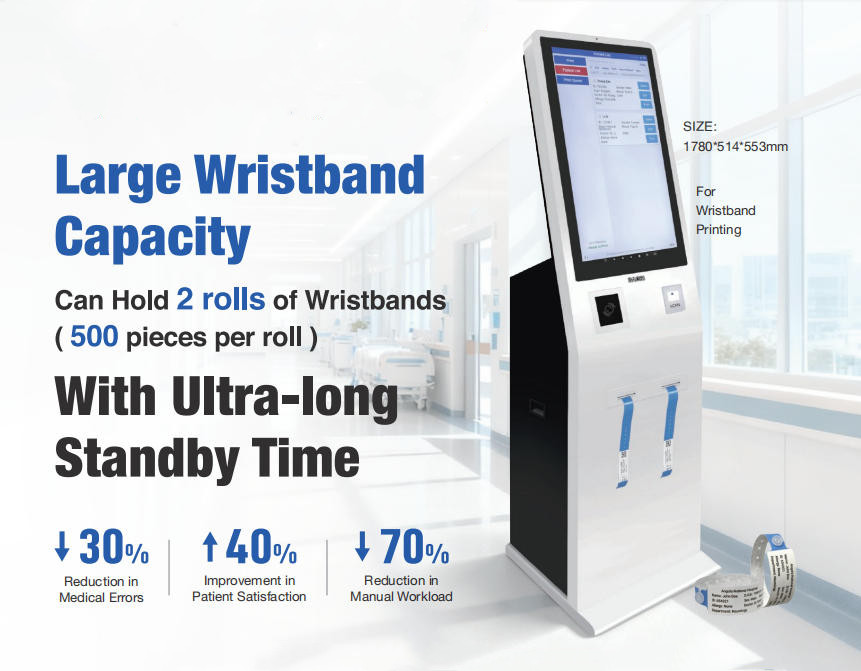

5. Overall dimensions: Height 1780MM × Width 514MM × Depth 553MM.

Network Connection

- Ethernet: Support 1000M/100M/10M adaptive Ethernet

- Wi-Fi: Support 2.4G WIFI

- Bluetooth: Support BT 5.2

Interfaces

- USB Interface: 2 standard USB2.0 Type-A ports, fixed host mode, current limiting 1.5A

- Network Interface: 1 RJ45 port, 10/100/1000M network port

- Serial Port: 2 RS232 serial ports

- Audio Output: 2*4W speakers

Touch Screen

- Touch Mode: 10-point multi-touch

- Working Mode: Capacitive

- Light Transmittance: ≥95%

- Response Time: ≤16ms

- Surface Hardness: Mohs 7 grade

- Resolution: 4096*4096

- Touch Activation Force: Minimum 80g

- Positioning Accuracy: ≤2mm

- Report Rate: 10-point touch: 80Hz

- Reaction Time: <10ms

- Service Life: ≥10 years

- Support explosion-proof, scratch-resistant, waterproof and dustproof functions

- Single-point Touch Times: More than 50 million times

Operating System

Android 14

LCD Display Screen

- Screen Size: 32 inches

- Resolution: 1920*1080

- Aspect Ratio: 16:9

- Display Colors: 16.7M

- Contrast Ratio: 1000:1

- Response Time: 4ms

- Brightness: 300cd /㎡

- Minimum Operating

Temperature Range: -20~+50℃

- Power Consumption: ≤90W

- Viewing Angle: ≥160°

Memory

- Running Memory (RAM): DDR4 8GB

- Storage Memory (ROM): 128GB

Wristband Printing Module

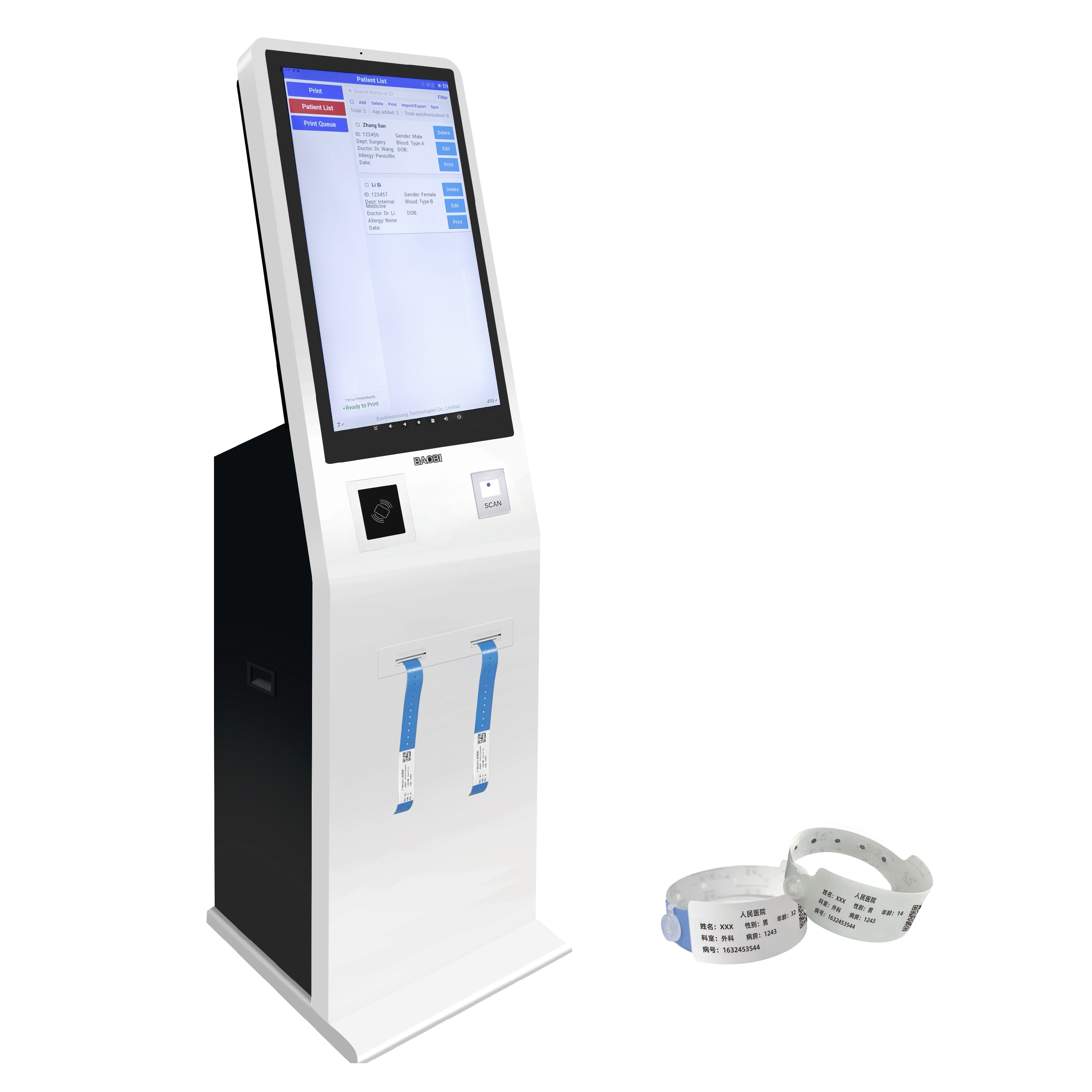

- Equipped with dual wristband Printing Module (Printer A & Printer B), Printer A on the left and Printer B on the right

- Printing Method: Thermal printing

- Resolution: 203dpi

- Printing Width: MAX.54mm

- Printing Speed: MAX.120mm/S

NFC Reader & Encoder (Optional)

- Protocol: ISO/IEC 14443 Type A

- Operating Frequency: 13.56MHZ

- Reading & Writing Distance: 1-3CM

Barcode Scanner (Optional)

- Fast sensing and scanning, with voice prompt function

- Capable of identifying various 1D barcodes (such as C128, C39, etc.) and 2D barcodes (Data Matrix, QR code, etc.)

- Resolution: 640*480

Security Features

- Encryption Technology: Adopt encryption algorithm for encrypted data transmission and storage

- Protective Shell: Equipped with sturdy protective shell to prevent malicious damage

- The whole cabinet is solid and firm with stable body, not easy to shake or be knocked down by accident. Strong and weak currents are separated, and complete grounding measures are provided to ensure the safety of operators and maintenance personnel.

Operating Environment

- Temperature: 0～45℃

- Humidity: 30%～80% (non-condensing)

Power Supply

- Input Voltage: 100-240 VAC, 50/60HZ

- Comply with standard industrial power supply standards

- Minimum Operating Temperature Range: 0～45℃

- Heat Dissipation Method: Natural cooling or air cooling

- Efficiency: ≥70%

- Overvoltage protection

- Short circuit protection

- Voltage Stabilization Accuracy: ≤10%

- Mean Time Between Failures: ≥750,000 cycles

- Power: 150W

Software & APP

- Pre-installed wristband printing demonstration APP

- Support secondary development

After-Sales Service

Warranty Period: 1 year
