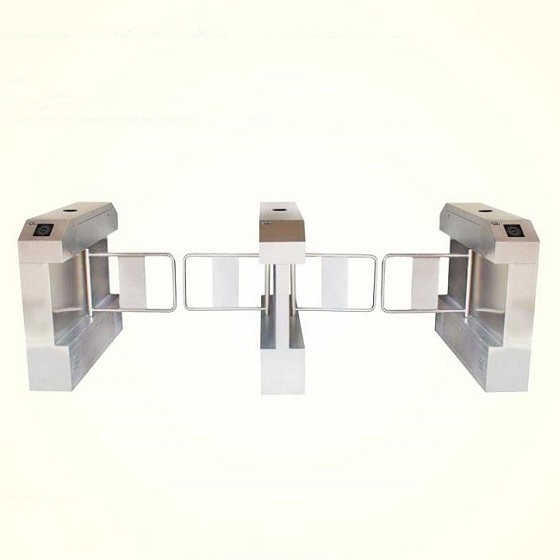

Economic Access Control Swing Gate-Bridge Bevel Swing Gate(Single Core) B-BZ03A
Economic Access Control Swing Gate-Bridge Bevel Swing Gate(Double Core) B-BZ03B
Highlight LED blinking direction indication
Automatic Homing Function:Gates automatically return to the hindered zero position after the pass process.
Power-off Function:When the power is cut off,the system will automatically open the gate,which is convenient for evacuating people,meet the requirements of fire protection
Anti-illegal Intrusion Function: When the card is invalid, no card swiping or no traffic is allowed, the forced entry channel will be regarded as illegal intrusion, the system will automatically alarm and close the wing gate.
Anti-backward Function: Pedestrians enter the pass from the opposite direction before the end of the pass process will be treated as a reverse intrusion and the system will automatically alarm and close the wing gate.
Anti-tailing Function: Photoelectric switch detects pedestrian traffic conditions and detects trailing phenomenon (the person behind sticks to the person in front, and try to pass without swiping card ). The system will automatically alarm and close the gate.
Intelligent Linkage Alarm: Including illegal intrusion, anti-reverse traffic and other alarms,can be equip with other alarm monitoring equipment, in the form of sound and light. If requires a flash alarm, it needs to add a illuminated alarm to the housing.（Illuminated alarm can be customized)
Infrared Anti-pinch: Install multiple pairs of photoelectric switches in the area close to the movement of the gate (anti-pinch area). Once the person or object in the anti-pinch area is detected, the swing arm keep open until the person or object leaves the anti-pinch area.
Hospitals, scenic spots, government sectors, customs inspections, financial institutions, office buildings, hotels , scientific research center,industries, amusement park, entertainment places.
Counting and alarm functions
Housing material can be customized,minimum distance is 0.8m
Housing material is mainly made of 304 stainless steel with a thickness of 1.26mm. Other materials can also be customized
Remote control switch
Dynamic face recognition all-in-one machine
Able to add the emergency escape function, use remote control switch to open the gate under emergency situation
Fingerprint identification for attendance machine
QR code for pass identification
Product Size: 1200*280*980mm
Packing Size (mm): 1220*310*1000 Power
Supply Voltage: 220VAC±10%/15%, 50HZ±4%
Drive Motor: 30-40W
DC24V Drive Mode: Brush motor mode
Working Temperature: -25°C ~ +75°C
Pass Rate: 10--60 people/minute Open/Close Time: ≈ 0.5-0.8 seconds
Technical Indicators: Anti-trailing/Anti-pinch
Channel Width: 1200mm(can be extended to 1600mm)
Control Signal: Switch signal
Average Number of Failures-free: 3 million times
Relative Temperature: 5%-90% non-condensing
Waterproof and Dustproof Level: Above Ip32
Wing door Length: 550mm(can be extended to 800mm)
